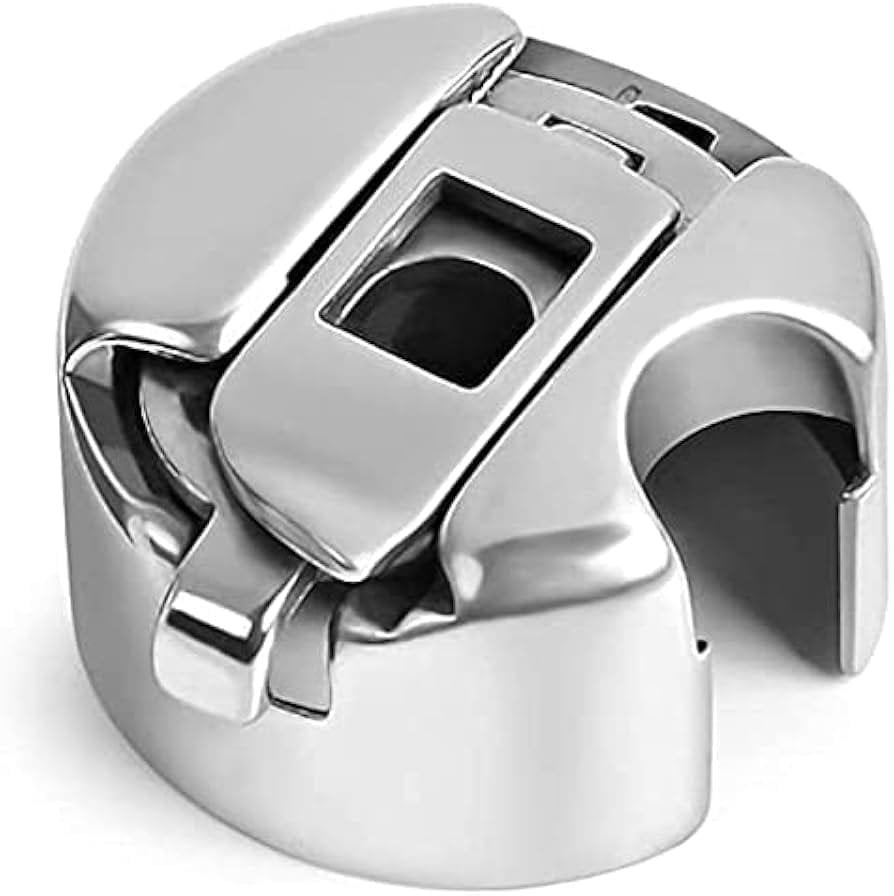

A
bobbin case
is a crucial component of a sewing machine. It holds the
bobbin
, which is a small spool of thread that feeds the lower thread into the fabric during sewing. The bobbin case helps regulate the tension of the lower thread and ensures that it is properly fed and aligned with the upper thread, allowing the sewing machine to form stitches.
Key Features:
Function
: The bobbin case serves as the housing for the bobbin, and it ensures that the thread unwinds from the bobbin smoothly as the sewing machine operates.
Location
: It is typically located in the
bottom
of the sewing machine, under the needle plate, and can be accessed by removing the needle plate or side cover.
Types
: There are two main types of bobbin cases:
Front-loading
: The bobbin case is inserted from the front of the sewing machine, and it requires a bit more effort to insert and remove.
Top-loading
: The bobbin is inserted from the top, which is more common in modern sewing machines and usually easier to access.
Material
: Most bobbin cases are made from
metal
or
plastic
, depending on the machine’s design and the level of precision needed.
Tension Adjustment
: Some bobbin cases allow you to adjust the tension of the bobbin thread to achieve the right balance between the upper and lower threads, essential for even stitching.
Importance:
The bobbin case is vital for achieving smooth and consistent stitching. If the bobbin case or bobbin is faulty, it can lead to issues such as thread tangling, skipped stitches, or improper tension in the stitching.
